Practical Notes from the Floor: Why This Flange Keeps Showing Up on Job Lists

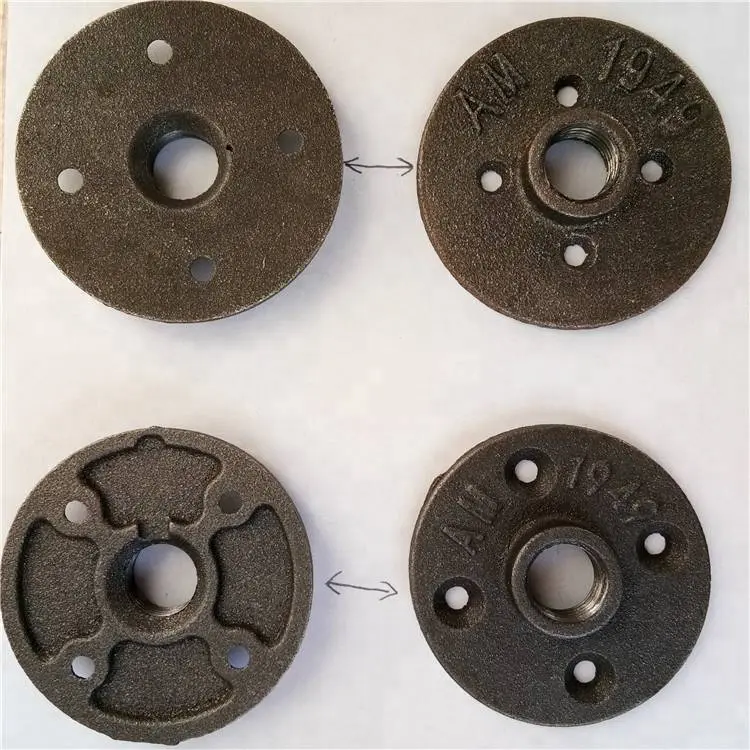

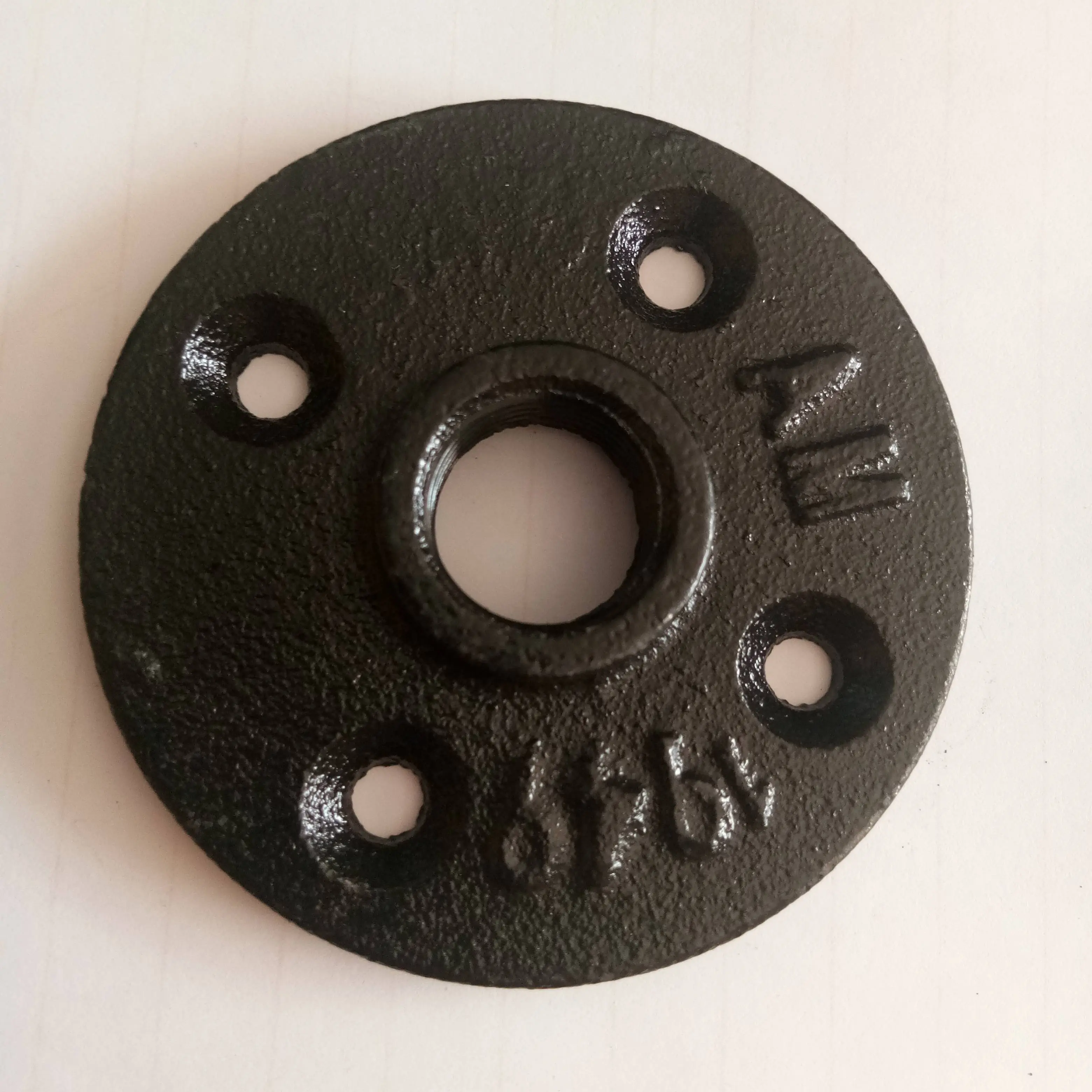

I’ve spent enough time in workshops and retrofit basements to know when a part becomes a quiet favorite. The 1 2 inch wrought cast iron 4 hole floor flange popular style is one of those items—no fuss, does the job, and looks good even when it’s meant to be hidden. Made in Hebei, China, and shipped from Room 1622-A, Hongsheng Business Plaza, Yuhua District, Shijiazhuang City, it’s a staple for DIY pipe furniture folks and maintenance pros alike.

Industry snapshot: small part, big trend

Pipe-fit furniture and exposed mechanical style are still in the mix—retail fixtures, cafés, Airbnbs. Meanwhile, facilities teams lean on cast iron flanges for stable mounting of half-inch pipe rails, safety guards, and sensor stands. To be honest, that cross-over is why demand keeps humming.

Where it’s used

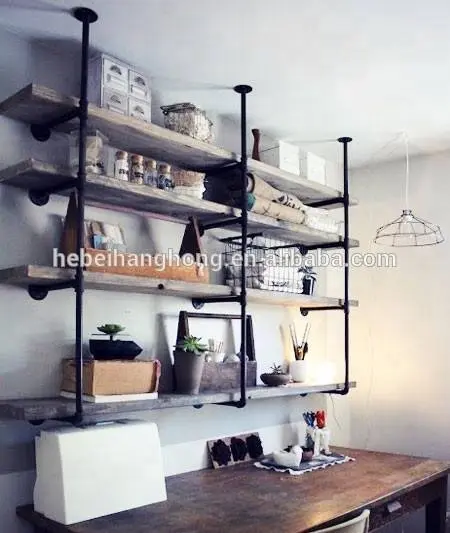

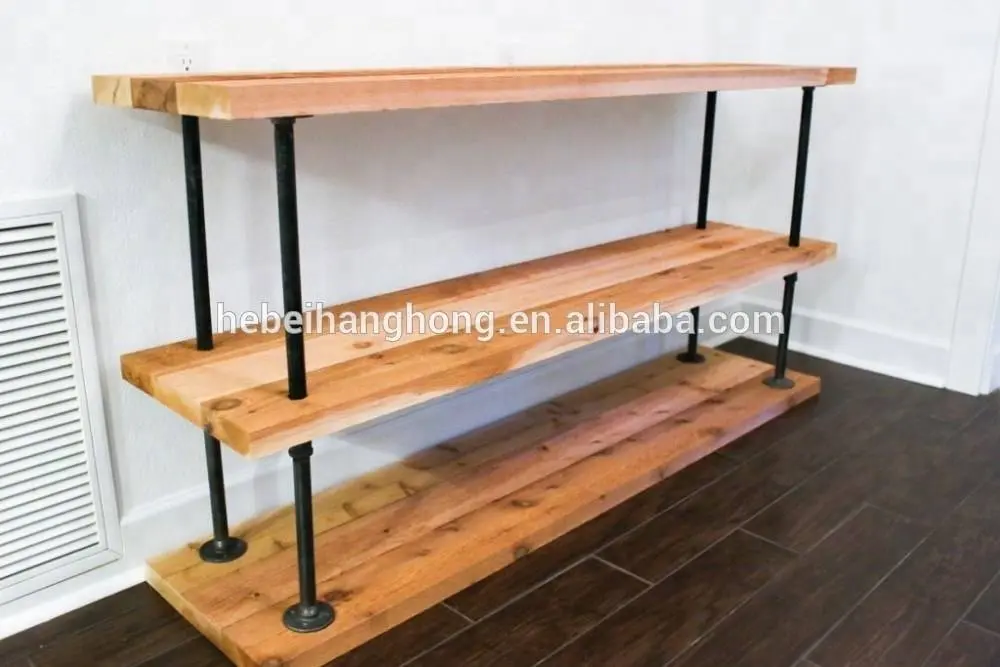

- Retail shelving, bar footrails, and sign posts

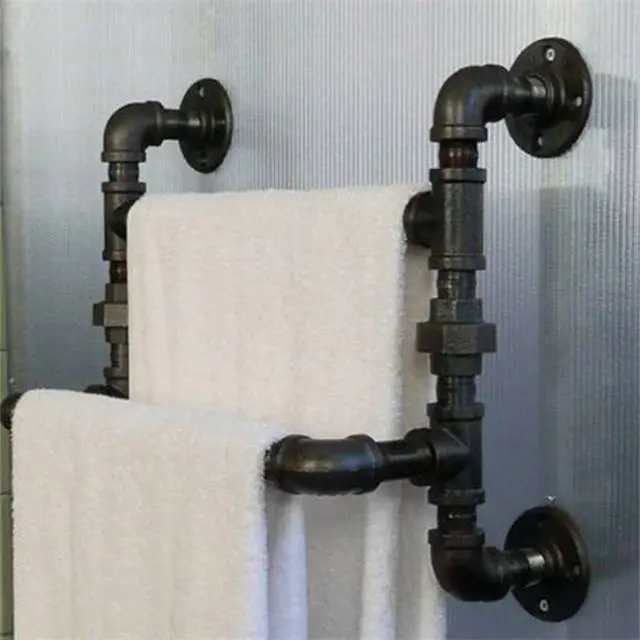

- Light-duty handrails and stanchions (indoor)
- Utility mounts: sensor brackets, cable trays, lab benches
- DIY desks, racks, and camera rigging (I’ve seen some clever hacks)

Specifications at a glance

How it’s made (and tested)

Materials: gray cast iron to ASTM A126 or similar. Method: sand casting, deburring, machining of NPT threads, and coating. QC includes dimensional checks, thread gauge verification (NPT L1/L3), coating adhesion (ASTM D3359), and salt spray sampling (ASTM B117; 24–72 h typical in this class). I guess the big variable is coating thickness—thicker lasts longer, obviously.

Certifications often cited: ISO 9001 for QA systems; conformance to ASME B16.1/ISO 7005-2 flange dimensions where applicable. Typical static load tests show safe working loads in the tens of kilograms for axial brackets on solid substrates (don’t skip anchors—real-world use may vary).

Vendor comparison (quick take)

Customization

Finish (matte black, clear coat), logo embossing, alternate hole diameters, and carton branding. Lead times are usually 15–30 days depending on run size.

What customers say

“Threads catch cleanly” comes up a lot. Some mention minimal flashing—nice for paint-and-go. A few note that pre-drilling proper anchors transforms the install (no surprise there).

Mini case files

- Boutique bar in Lisbon used 60 units of 1 2 inch wrought cast iron 4 hole floor flange popular style for footrails; still spotless after a year, thanks to clear-coat touch-ups.
- Warehouse pick-line added sensor posts; four-bolt pattern resisted swivel creep—maintenance team called it “set-and-forget.”

Quick install tips

- Use proper anchors matched to substrate (concrete vs. wood).
- Test-fit threads before final mounting; don’t overtighten tapered NPT.
- For humid spaces, add a topcoat; reapply annually if traffic is high.
- Keep hole edge clear; paint drips can skew torque readings.

Bottom line: if you need a reliable, clean-looking base for 1/2-inch pipe projects, the 1 2 inch wrought cast iron 4 hole floor flange popular style hits that sweet spot of cost, durability, and availability.

Authoritative citations

1. ASME B16.1 – Gray Iron Pipe Flanges and Flanged Fittings
2. ISO 7005-2 – Metallic flanges, Part 2: Cast iron flanges
3. ASTM A126 – Gray Iron Castings for Valves, Flanges, and Pipe Fittings
4. ASTM B117 – Standard Practice for Operating Salt Spray (Fog) Apparatus
5. ASTM D3359 – Measuring Adhesion by Tape Test
