Cast iron hot galvanizing single/double socket fittings

Short Description:

Overview Quick Details Place of Origin: Hebei, China (Mainland) Brand Name: HH Model Number: HH232 ...

CONTACT NOW DOWN LOAD PDF

Details

Tags

Overview Quick Details

Place of Origin:: Hebei, China (Mainland)

Brand Name:: HH

Model Number:: HH232

Usage:: Pipe Clamp

Material:: iron, Cast Iron, Malleable Iron And Ductile Iron

Structure:: T Clamp

Standard or Nonstandard:: Standard

Surface treatment:: hot galvanized, black or as per customer's requirement

Grub Screw:: ISO 4029 DIN 916

Material Tensile Strength:: 300-350 Mpa

Application:: Hand Railing, Safety Guardrails, Fencing,play Safe

Used For:: Furniture, Racking,lighting

Material Hardness:: <=150HB

Thickness Of Galvanization:: 70um

Material Elongation:: 6-10%

Suit To Pipe SIZE:: BS EN 10255 2004 Diameter:3/4"-2"

Supply Ability

2000 Ton/Tons per Month galvanized cast iron pipe key clamp parts fittings

Packaging & Delivery

Packaging Details: 1) wooden case package 2) pallet package As per requirements.

Port: Tianjin xingang, Qingdao port

Picture Example:

Lead Time :

Quantity(Pieces)	1 – 100	>100
Est. Time(days)	10	To be negotiated

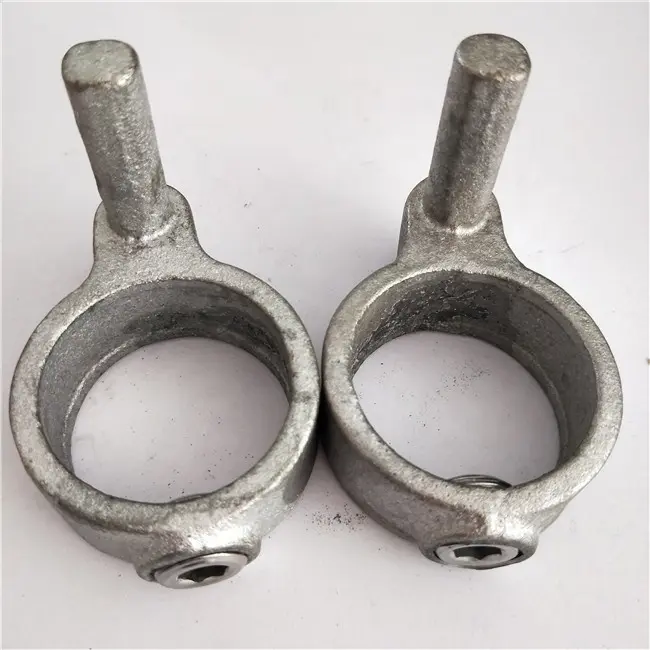

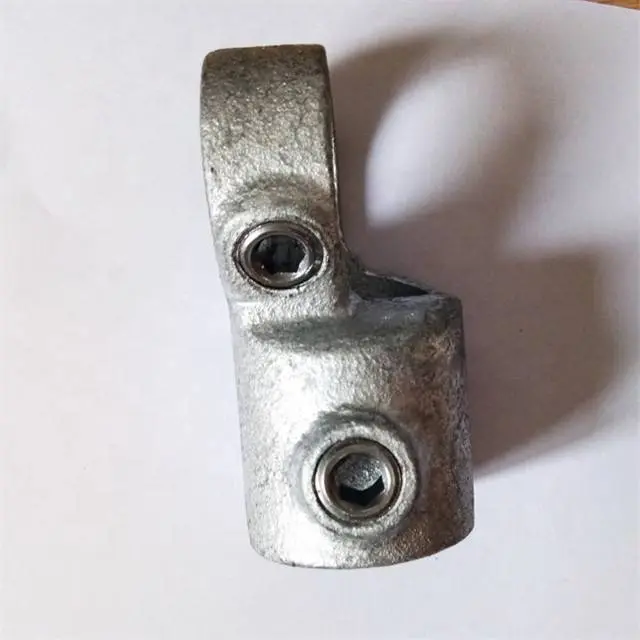

Cast iron hot galvanizing single/double socket fittings

product photo

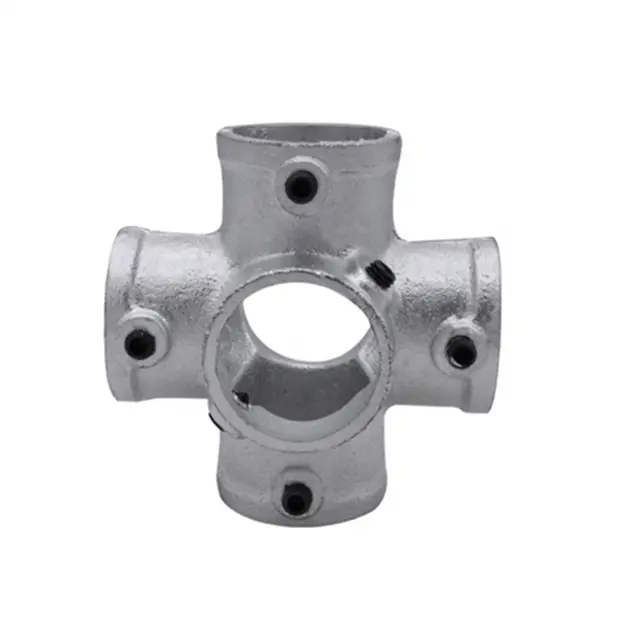

Clamps:

Specifications:

Key Clamps are used in conjunction with galvanised steel tubing. The Key Clamps are secured to the tube by means of hexagon socket set screws, which are tightened using an allen key or ratchet spanner to establish a firm lock between the clamp and the tube. The sharpened edges of the socket set screws effectively 'bite’ into the surface of the tube creating a solid connection.

Key Clamp Fittings Manufactured to BS EN 1562 1997

Hot-Dipped Galvanized to BS EN 1461 1999.

Available in 5 different sizes 26.9mm, 33.7mm, 42.4mm, 48.3mm (Scaffolding size) or 60.3mm

Our blackened, galvanized vintage iron styled fittings are fast using our in-house method.
Typically a dark/grey black effect, with original flecks and streaks of silver.
These are a great addition to our range that we are excited about.

The information regarding this range.

All fittings are done singly and therefore the finish does vary, and is by no means uniform. Fittings will be slightly greasy when delivered, so if further painting or clear coating is required, please de-grease beforehand to ensure adhesion. This is an irreversible chemical change to the galvanised coating, and does effect the corrosion resistance, for this reason we cannot guarantee their continued usability in outdoor environments.

We can cut lengths pipes to any sizes, feel free to Contact Us for a quotation.
Whether your idea is on a scrap of paper, or a CAD drawing, we can help quote you the parts necessary.
High Quality Key Clamps at a great price!

suited to a diverse range of tubular-based applications / constructions, appropriate for both interior and exterior environments.
