4X 3/4 Malleable Iron Pipe Floor Flange, 3/4" BSP Wall Mount

4X 3/4 Malleable Iron Pipe Fittings Floor Flange 3/4" Threaded BSP Wall Mount

Industrial décor darlings and maintenance pros have been quietly converging on the same hardware aisle: heavy-duty malleable iron floor flanges. I’ve handled a lot of these over the years, and this set from HH (Hebei) is one of those “buy once, use everywhere” SKUs. Origin story? Room 1622-A, Hongsheng Business Plaza, Yuhua District, Shijiazhuang City, Hebei Province, R. China—right in a region that lives and breathes metalwork.

What you’re getting (and why it matters)

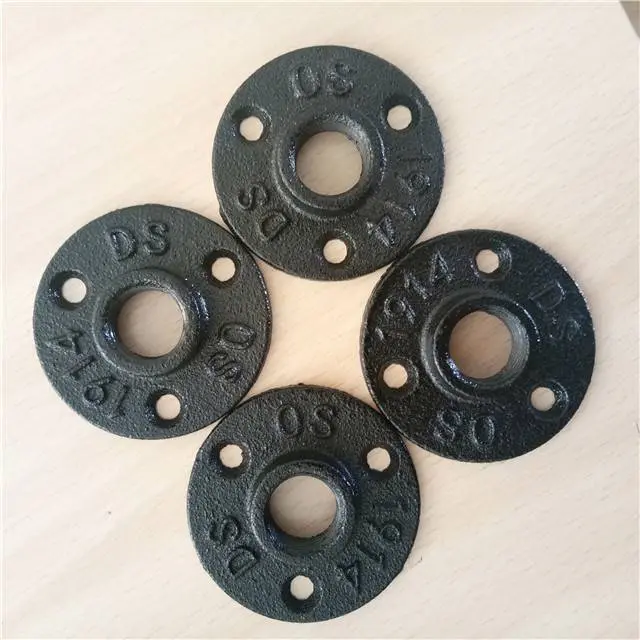

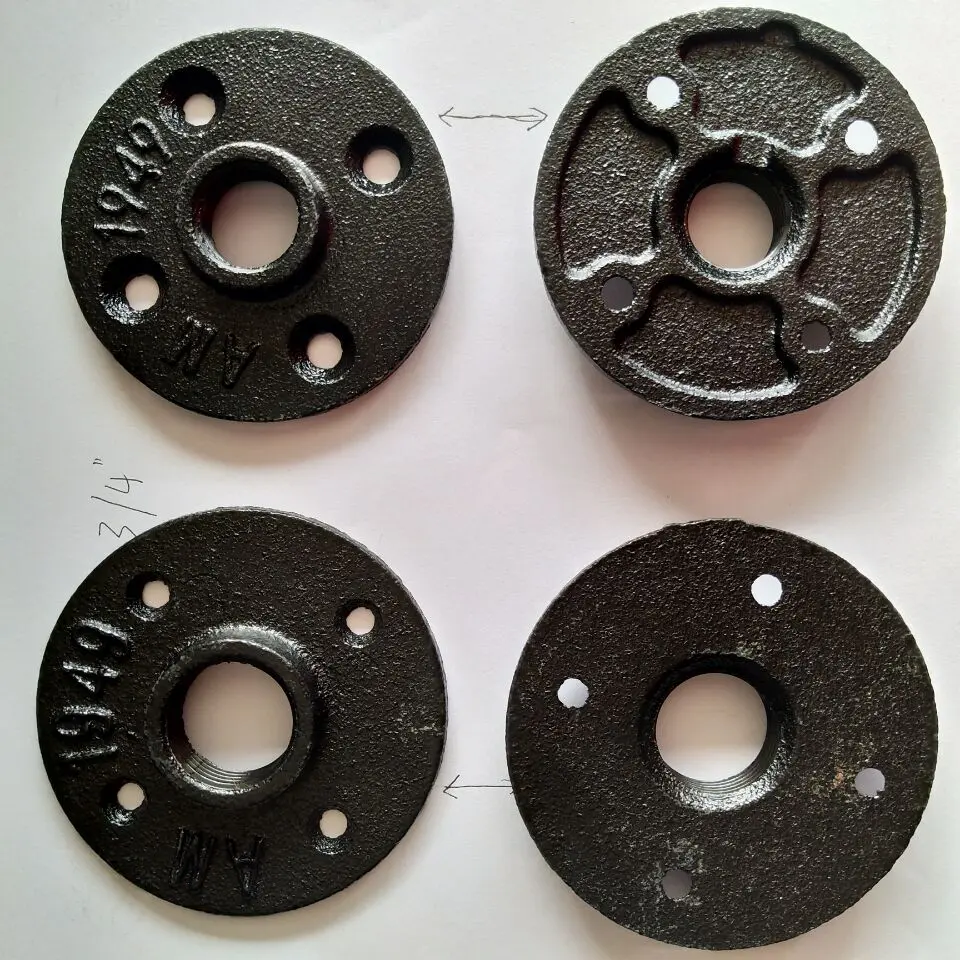

The set ships as four 3/4-inch BSP threaded floor flanges—classic four-bolt pattern—used to anchor pipe to walls, floors, or ceilings. In fact, many customers say they buy a box for shelving and come back for handrails, then end up building an entire café interior. Versatile is an understatement.

Spec	Detail (≈ values, real‑world use may vary)
Material	Malleable cast iron (comparable to ASTM A47/A197 ferritic grades)
Thread	BSP 3/4" (BSPP per ISO 228-1 or BSPT per ISO 7-1—project-dependent)
Finish	Black or zinc-plated; optional clear coat for décor installs
Flange OD	≈ 85–90 mm; 4-hole pattern
Mounting Holes	4 x countersunk holes (use wood/concrete anchors as needed)
Service life	≈ 15–25 years indoors; outdoors depends on coating and exposure
Compliance baseline	BS EN 10242 (malleable iron fittings); ISO 228-1 / ISO 7-1 threads

How it’s made (short version)

Methodology is old-school reliable: precision sand casting, graphitization annealing for malleability, CNC de-burring and facing, full-thread tapping to BSP gauges, then finish (blackened or zinc). To be honest, the better factories don’t skip testing: dimensional inspection with GO/NO-GO plug gauges, proof pressure checks (sampled to BS EN 10242), salt spray to ISO 9227 for plated versions (≥72 h baseline), and adhesion per ASTM D3359. I asked HH about batch traceability; they keep heat numbers—useful if you’re writing specs.

Where it works best

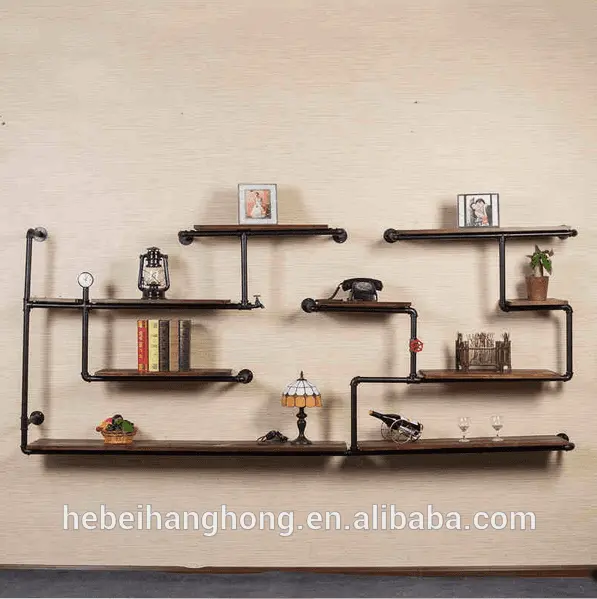

Retail and F&B: rustic shelves, bar footrails, clothing racks—surprisingly robust.

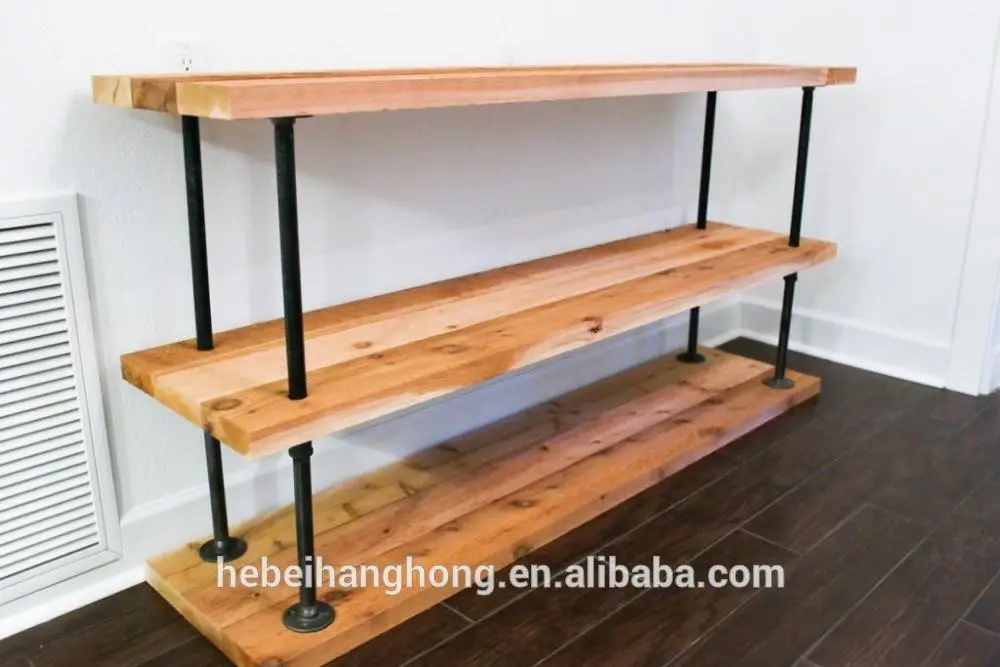

Residential: DIY shelving, TV console supports, wall-mounted bike racks (with proper anchors).
Light industrial: conduit standoffs, guard chains, equipment labels—nothing too exotic.

Advantages? Load-friendly, easy to align, globally compatible BSP threads, and replaceable. And yes, 4X 3/4 Malleable Iron Pipe Fittings Floor Flange 3/4" Threaded BSP Wall Mount sets come boxed so you’re not hunting for singles.

Vendor snapshot (quick compare)

Vendor	Standards	Finish	MOQ	Lead Time
HH (Hebei)	BS EN 10242, ISO 228-1/ISO 7-1	Black or zinc; OEM colors	≈ 200 sets	≈ 15–25 days
Marketplace Brand A	Claims ISO only	Black paint	Retail packs	Ready stock
Marketplace Brand B	—	Zinc only	≈ 500 sets	≈ 30–40 days

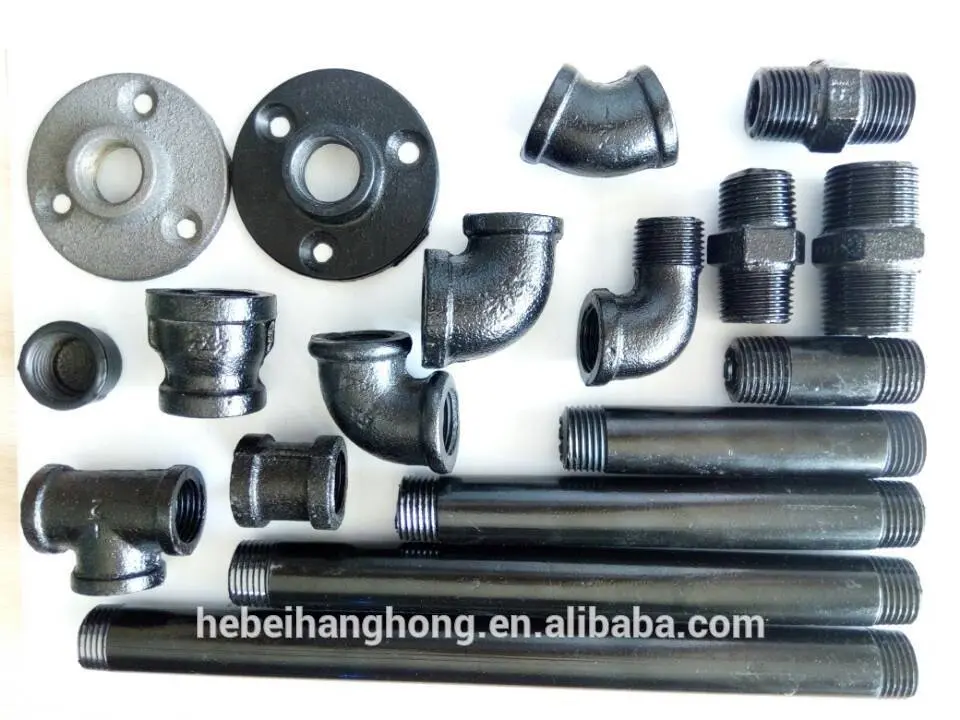

Customization: logo casting on face, bespoke coatings (matte black, gunmetal), retail boxing with barcodes, and mixed packs with matching elbows/tees. If you spec 4X 3/4 Malleable Iron Pipe Fittings Floor Flange 3/4" Threaded BSP Wall Mount for hospitality, ask for salt-spray certification and thread gauge reports.

Field notes (two quick cases)

Retail chain (EU): 240 cafés rolled out pipe-shelf systems using 4X 3/4 Malleable Iron Pipe Fittings Floor Flange 3/4" Threaded BSP Wall Mount. Installers reported ±0.2 mm face flatness on samples; zero thread cross-bind; fixtures passed a 72 h ISO 9227 neutral salt spray for zinc-coated parts—no blistering.

Residential contractor (US): 16 home gyms—wall-mounted bars with 3/4" pipe + concrete anchors. After 6 months, no loosening. Feedback was mostly about the finish: “Zinc cleans up fingerprints better than black.” I guess it depends on the look you want.

Checklist before you buy

Confirm BSPP vs BSPT; match to your pipe and sealant plan.
Ask for EN 10242 declaration and thread gauge records.
For outdoor use, specify zinc + clear coat and request ISO 9227 report.
If shelves carry real weight, choose proper anchors and verify substrate.

Short Description recap: Brand HH, Model HH, made in Hebei, China (Mainland). Straightforward, durable, and—surprisingly—stylish when staged right.

Authoritative citations

BS EN 10242: Threaded pipe fittings in malleable cast iron — BSI. https://www.bsigroup.com
ISO 228-1: Pipe threads where pressure-tight joints are not made on the threads — ISO. https://www.iso.org
ISO 7-1 / EN 10226-1: Pipe threads where pressure-tight joints are made on the threads — ISO/CEN. https://www.iso.org
ISO 9227: Corrosion tests in artificial atmospheres — Salt spray tests — ISO. https://www.iso.org
ASTM D3359: Standard Test Methods for Rating Adhesion by Tape Test — ASTM. https://www.astm.org
ASTM A47/A47M: Standard Specification for Ferritic Malleable Iron Castings — ASTM. https://www.astm.org
