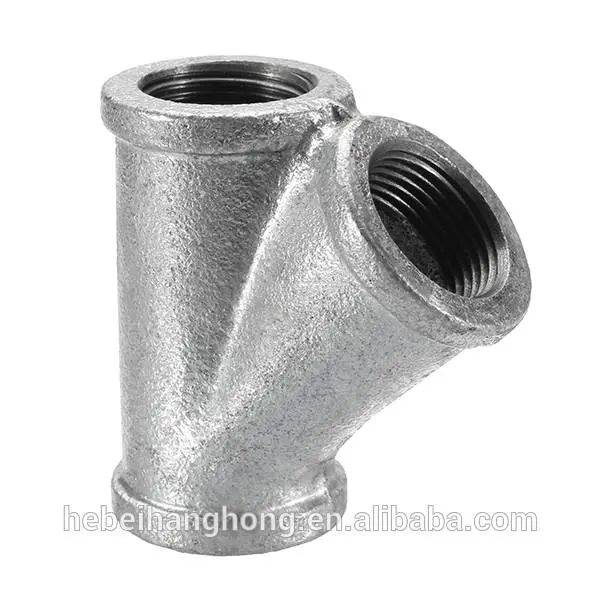

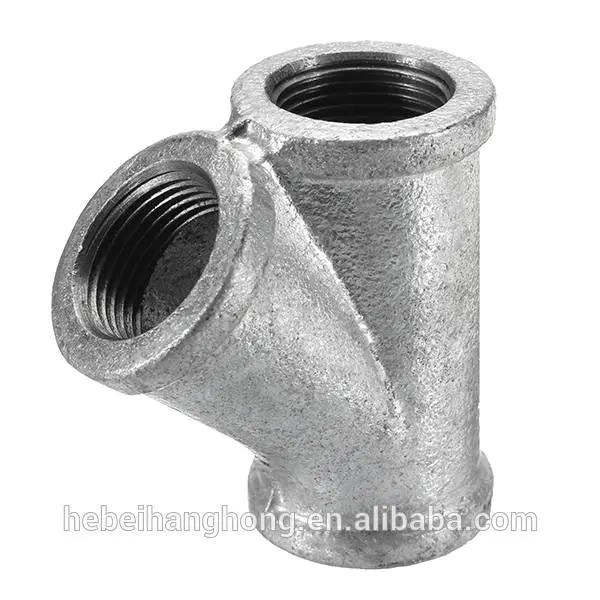

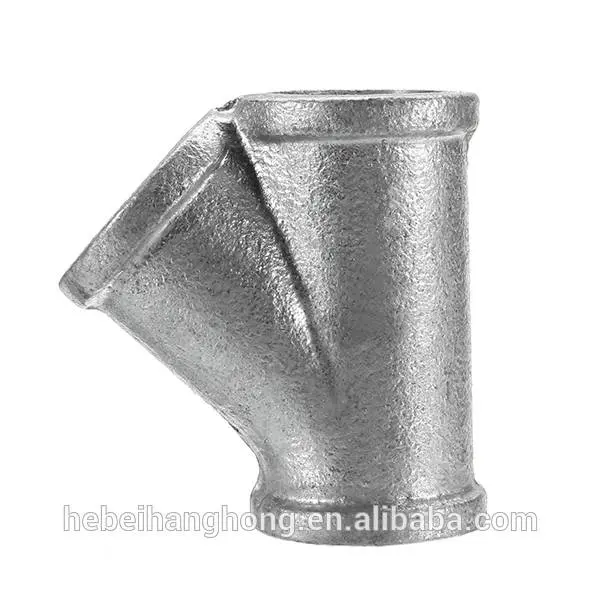

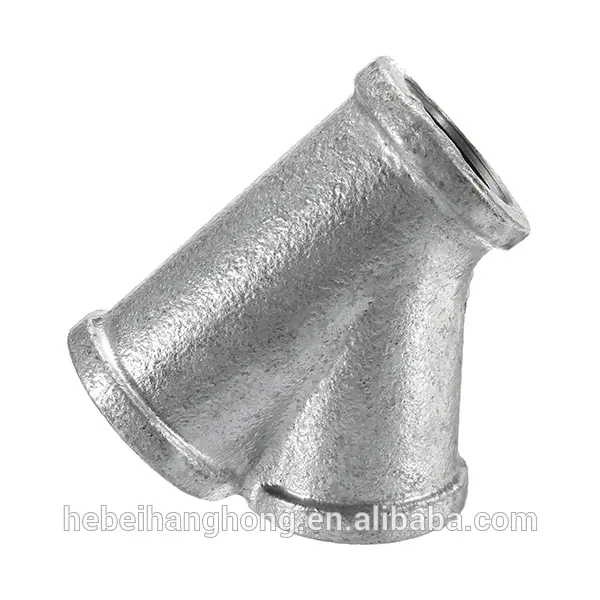

1/2 3/4 1" Galvanized Malleable Iron 45 Degree Female Y Branch

Navigating Fluid Dynamics: The Critical Role of High-Performance Branch Fittings

In complex industrial piping systems, the efficiency and integrity of fluid distribution heavily rely on specialized components. Among these, the 1/2 3/4 1 inch Y BRANCH PIPE FITTING CONNECTOR MALLEABLE IRON GALVANIZED 45 DEGREE FEMALE stands out as a fundamental element designed for precise flow redirection and robust performance. These fittings, crafted from malleable iron and treated with a galvanized finish, are engineered to withstand demanding operational environments, ensuring reliability and longevity in critical infrastructure.

Industry Trends Shaping Pipe Fitting Demands

The global industrial landscape is witnessing significant trends that underscore the importance of high-quality pipe fittings. Digitalization and the advent of Industry 4.0 are pushing for more precise, reliable, and intelligent piping networks. There's an increasing demand for materials that offer superior corrosion resistance and extended service life to reduce maintenance costs and operational downtime, especially in aggressive chemical or high-humidity environments. Furthermore, regulatory frameworks are becoming stricter, necessitating fittings that comply with international standards for safety, material composition, and performance. Energy efficiency is another driving factor, with Y-branch fittings designed to minimize pressure drop and optimize flow, contributing to overall system efficiency. The push towards sustainable manufacturing also encourages processes that reduce waste and utilize durable, recyclable materials like malleable iron, further enhancing the appeal of galvanized fittings.

The Manufacturing Process: Precision Engineering for Durability

The production of a high-quality 1/2 3/4 1 inch Y BRANCH PIPE FITTING CONNECTOR MALLEABLE IRON GALVANIZED 45 DEGREE FEMALE involves a meticulously controlled multi-stage process, ensuring both structural integrity and optimal performance. This journey transforms raw materials into a highly functional component vital for industrial fluid transfer systems.

Raw Material Selection and Melting

The foundation of this robust fitting is high-grade white cast iron. This material, rich in carbon and silicon, is carefully selected for its inherent strength. It is melted in induction furnaces, where precise temperature control and alloying element additions are critical to achieve the desired metallurgical properties, preparing it for the casting stage. The composition is rigorously tested to meet ASTM A197/A47 or equivalent standards.

Casting and Annealing

Once molten, the iron is poured into sand molds, a process known as sand casting. This method allows for the creation of complex geometries inherent in Y-branch designs. After cooling, the raw castings are removed from the molds. These "white iron" castings are initially brittle due to their carbon structure. They then undergo an extensive heat treatment process called annealing, specifically graphitization annealing. This involves heating the castings to high temperatures (typically 800-950°C) for an extended period in a controlled atmosphere, followed by slow cooling. This process transforms the brittle cementite into graphite nodules within a ferrite matrix, giving malleable iron its characteristic ductility and toughness, crucial for a reliable 1/2 3/4 1 inch Y BRANCH PIPE FITTING CONNECTOR MALLEABLE IRON GALVANIZED 45 DEGREE FEMALE.

Machining and Threading

Post-annealing, the fittings proceed to CNC machining centers. Here, precise operations are performed to achieve the exact dimensions, ensure smooth flow paths, and create the female threads. The 45-degree angle of the Y-branch is meticulously maintained, and thread forms (typically NPT for North America or BSPT/BSPP for international markets) are cut to exacting tolerances, ensuring leak-proof connections in accordance with standards like ANSI B1.20.1 or ISO 7-1.

Hot-Dip Galvanization

The final protective layer is applied through hot-dip galvanization. After thorough cleaning and pickling to remove impurities and prepare the surface, the malleable iron fittings are immersed in a bath of molten zinc. This process creates a metallurgically bonded zinc coating that acts as a robust barrier against corrosion and offers cathodic protection, significantly extending the service life of the fitting, especially in corrosive environments. The coating thickness and adhesion are verified against standards such as ASTM A153/A123 or ISO 1461. This step is paramount for a truly resilient 1/2 3/4 1 inch Y BRANCH PIPE FITTING CONNECTOR MALLEABLE IRON GALVANIZED 45 DEGREE FEMALE.

Quality Control and Testing

Throughout the entire manufacturing process, rigorous quality control measures are implemented. This includes visual inspections for surface defects, dimensional checks using precision instruments, and thread gauging. Crucially, fittings undergo hydrostatic pressure testing to verify structural integrity and leak-tightness under specified operating pressures. Non-destructive testing methods like eddy current or magnetic particle inspection may also be employed. Adherence to standards like ISO 9001 for quality management and ANSI B16.3 for malleable iron fittings ensures consistent product excellence and reliability.

Technical Specifications and Performance Parameters

Understanding the precise technical specifications of a 1/2 3/4 1 inch Y BRANCH PIPE FITTING CONNECTOR MALLEABLE IRON GALVANIZED 45 DEGREE FEMALE is paramount for engineers and procurement specialists to ensure compatibility, safety, and optimal system performance. These parameters define the fitting's physical characteristics, material properties, and operational limits.

Material Composition and Properties

• Material: Malleable Iron, specifically ASTM A197/A47 compliant, ensuring a ductile and robust structure capable of absorbing shock and resisting deformation.
• Coating: Hot-dip galvanized per ASTM A153/A123 or ISO 1461, providing superior corrosion resistance through sacrificial and barrier protection, extending the fitting's lifespan significantly in outdoor or humid environments.
• Tensile Strength: Typically 350-450 MPa (50,000-65,000 psi), offering excellent resistance to pulling forces.
• Yield Strength: Approximately 220-300 MPa (32,000-43,000 psi), indicating its ability to withstand stress without permanent deformation.
• Elongation: High ductility with 10-18% elongation, which means it can deform significantly before fracturing, a critical safety factor.

Dimensional and Thread Specifications

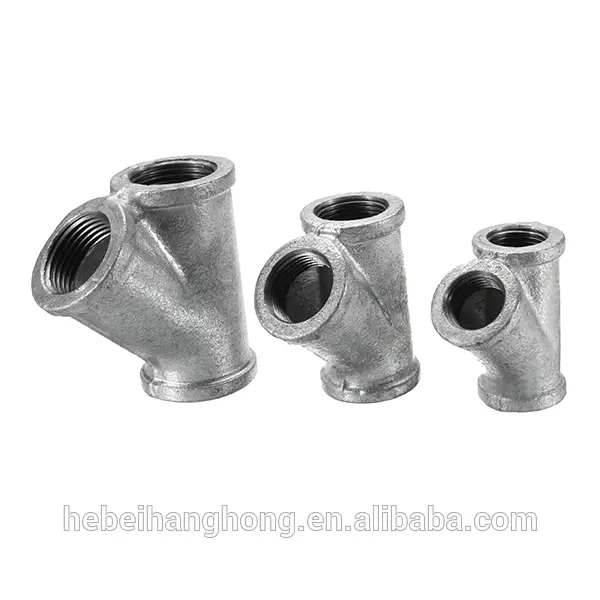

• Sizes: Available in nominal pipe sizes (NPS) of 1/2 inch, 3/4 inch, and 1 inch, catering to common piping requirements.
• Angle: Precisely engineered to a 45-degree angle, optimizing flow distribution with minimal turbulence and pressure loss.
• Thread Type: Female threads, typically conforming to NPT (National Pipe Taper) per ANSI B1.20.1 or BSPT (British Standard Pipe Taper) / BSPP (British Standard Pipe Parallel) per ISO 7-1, ensuring broad compatibility with corresponding male-threaded pipes.
• Pressure Rating: Often rated for working pressures up to 150 PSI (Class 150) for steam, water, oil, and gas applications, with higher ratings possible depending on specific design and testing. Burst pressure typically exceeds working pressure by a factor of 4.
• Temperature Range: Suitable for operating temperatures typically from -20°C to 200°C (-4°F to 392°F), depending on specific pressure ratings and fluid media.

Product Specification Table: 1/2 3/4 1 inch Y Branch Pipe Fitting

Application Scenarios and Technical Advantages

The versatility and robust construction of the 1/2 3/4 1 inch Y BRANCH PIPE FITTING CONNECTOR MALLEABLE IRON GALVANIZED 45 DEGREE FEMALE make it indispensable across a multitude of industrial sectors. Its specific design allows for efficient branching of fluid lines, critical for system layout and operational flexibility.

Target Industries and Typical Applications

• Petrochemical Industry: Used in refinery systems, chemical processing plants, and oil and gas transportation for splitting pipelines carrying various liquids and gases. The galvanized finish provides essential protection against corrosive petrochemicals and environmental factors.
• Metallurgy and Mining: Applied in cooling water lines, dust suppression systems, and hydraulic circuits in harsh mining environments where abrasion and corrosion are significant concerns.
• Water Supply & Drainage Systems: Integral to municipal water treatment plants, irrigation networks, and industrial wastewater management, facilitating flow division and maintaining system pressure. Its corrosion resistance is crucial for long-term performance with water.
• HVAC and Fire Protection: Employed in heating, ventilation, and air conditioning systems for fluid distribution, and in fire sprinkler systems where reliable and durable components are non-negotiable for safety.
• General Industrial Utilities: Common in compressed air lines, steam distribution networks, and industrial gas piping, where efficient branching and robust connection points are required.

Key Technical Advantages

The design and material science behind these Y-branch fittings deliver several compelling advantages:

• Superior Corrosion Resistance: The hot-dip galvanized coating provides a formidable barrier against rust and corrosion, significantly extending the service life compared to ungalvanized alternatives. This is crucial for outdoor installations or applications involving aggressive fluid media, translating to lower lifecycle costs and reduced maintenance.
• Optimized Flow Dynamics: The 45-degree angle of the branch is designed to minimize turbulence and pressure drop, facilitating smoother fluid flow distribution. This energy-saving characteristic helps maintain system efficiency and reduces pump workload, contributing to lower operational energy consumption.
• Exceptional Mechanical Strength: Malleable iron, through its annealing process, possesses a unique combination of high tensile strength and ductility. This allows the fitting to withstand significant mechanical stress, vibration, and thermal expansion/contraction without fracturing, making it suitable for high-pressure and dynamic systems.
• Leak-Proof Connections: Precision-machined female threads ensure tight, reliable, and leak-proof connections when properly installed with corresponding male-threaded pipes. This prevents costly fluid loss, minimizes environmental risks, and maintains system pressure integrity.
• Cost-Effectiveness and Longevity: While offering high performance, malleable iron fittings are generally more cost-effective than stainless steel alternatives, especially when galvanized. Their extended service life due to robust material and protective coating ensures a high return on investment and reduced replacement frequency.

Vendor Comparison and Competitive Edge

When selecting a supplier for critical components like the 1/2 3/4 1 inch Y BRANCH PIPE FITTING CONNECTOR MALLEABLE IRON GALVANIZED 45 DEGREE FEMALE, B2B decision-makers must evaluate vendors based on a comprehensive set of criteria beyond mere price. Quality, reliability, adherence to standards, and customer support are paramount.

Key Differentiators in Vendor Selection

While many manufacturers offer malleable iron fittings, not all achieve the same level of precision, durability, and service. Discerning buyers should consider:

• Material Sourcing & Quality Control: Reputable vendors ensure that raw malleable iron conforms to international standards (e.g., ASTM A197/A47) and perform in-house metallurgical testing.
• Manufacturing Precision: The accuracy of the 45-degree angle, consistent wall thickness, and precise threading (NPT/BSPT) are crucial for ease of installation and leak-free performance. High-quality CNC machining and automated production lines signify superior precision.
• Galvanization Process: The quality of hot-dip galvanization is a significant factor. Thickness uniformity, adhesion, and a smooth, defect-free coating (per ASTM A153/A123 or ISO 1461) directly impact corrosion resistance and longevity. Inferior galvanization can lead to premature failure.
• Certifications and Compliance: A vendor's adherence to international standards (ISO 9001 for quality management, ANSI B16.3 for fitting dimensions, UL/FM approvals for fire protection applications) provides assurance of consistent quality and safety.
• Technical Support and Customization: The ability to provide detailed technical data, support for complex installations, and options for customized solutions (e.g., specific coatings, unique dimensions for large orders) adds significant value.

Product Comparison: Generic Galvanized Malleable Iron Y-Branch Fittings

Our commitment to adhering to stringent international standards and employing advanced manufacturing techniques ensures that our 1/2 3/4 1 inch Y BRANCH PIPE FITTING CONNECTOR MALLEABLE IRON GALVANIZED 45 DEGREE FEMALE consistently surpasses basic industry benchmarks, delivering unparalleled reliability and value.

Customized Solutions and Application Case Studies

Recognizing that no two industrial applications are exactly alike, we offer extensive customized solutions for our 1/2 3/4 1 inch Y BRANCH PIPE FITTING CONNECTOR MALLEABLE IRON GALVANIZED 45 DEGREE FEMALE to meet specific project requirements. Our engineering team collaborates closely with clients to tailor fittings for unique challenges.

Tailored to Your Needs

Customization options can include:

• Special Threading: While NPT and BSPT are standard, we can accommodate other regional or proprietary thread specifications.
• Modified Coatings: For extreme environments, specialized coatings beyond standard galvanization can be applied, such as epoxy or PTFE linings for enhanced chemical resistance.
• Unique Dimensions: While the primary keyword specifies 1/2, 3/4, and 1 inch sizes, for large-scale projects, specific wall thicknesses or slightly varied branch angles might be fabricated to optimize flow dynamics for particular system designs.
• Pressure Ratings: Fittings can be engineered and tested for higher or specific pressure classes beyond the standard Class 150 to meet demanding operational parameters.

Real-World Application Case Studies

Case Study 1: Municipal Water Distribution Network Upgrade (North America)

A major municipal water authority initiated an upgrade of its aging distribution network, seeking fittings with enhanced corrosion resistance and proven longevity. They required a reliable 1/2 3/4 1 inch Y BRANCH PIPE FITTING CONNECTOR MALLEABLE IRON GALVANIZED 45 DEGREE FEMALE for numerous branch connections to residential and commercial lines. Our galvanized malleable iron fittings were selected for their ASTM A153 compliant hot-dip galvanization, which significantly extends service life in underground and constantly wet environments. Post-installation, the project manager reported zero leaks and reduced installation time due to the precise NPT threading, leading to substantial labor cost savings. The long-term performance is projected to reduce maintenance cycles by 30% over the next decade.

Case Study 2: Industrial Compressed Air System Expansion (Europe)

A large manufacturing facility needed to expand its compressed air distribution system to new production lines, demanding fittings that could handle moderate pressure and ensure efficient airflow. They opted for our 1/2 3/4 1 inch Y BRANCH PIPE FITTING CONNECTOR MALLEABLE IRON GALVANIZED 45 DEGREE FEMALE due to its Class 150 pressure rating and smooth 45-degree internal design, which minimizes air turbulence and pressure drop. The galvanized coating was also a key factor for preventing internal corrosion from moisture in the air lines. Customer feedback highlighted the ease of installation and the consistent quality across thousands of units, contributing to a rapid and successful system rollout without any operational hitches.

Commitment to Quality, Support, and Trust

Our dedication to providing high-quality 1/2 3/4 1 inch Y BRANCH PIPE FITTING CONNECTOR MALLEABLE IRON GALVANIZED 45 DEGREE FEMALE is underpinned by stringent adherence to international standards, transparent operations, and comprehensive customer support. This commitment ensures that our clients receive not just products, but reliable solutions backed by expertise and trust.

Authoritative Certifications and Partnerships

We are proud to hold ISO 9001 certification, a testament to our robust quality management systems across design, production, and service. Our products are manufactured to conform with leading industry standards such as ANSI B16.3, ISO 49, and BS EN 10242, ensuring compatibility and performance across global applications. Years of service in the B2B sector have allowed us to build long-standing partnerships with industry leaders in petrochemical, construction, and public utilities, validating our consistent product quality and reliable supply chain.

Frequently Asked Questions (FAQ)

• Q: What is the typical service life of a galvanized malleable iron fitting?
  A: With proper installation and in standard operating environments, our galvanized malleable iron fittings typically offer a service life exceeding 20-30 years, significantly longer than ungalvanized alternatives, thanks to the robust zinc coating.
• Q: Are these fittings suitable for potable water systems?
  A: Yes, our hot-dip galvanized malleable iron fittings are generally suitable for potable water systems, meeting relevant industry standards. However, specific regional regulations might require additional certifications, which we can provide upon request.
• Q: Can these fittings be welded?
  A: Malleable iron is generally not recommended for welding due to its metallurgical structure, which can be negatively altered by the heat. Threaded connections are the intended and most reliable method for installation.
• Q: What is the lead time for large orders?
  A: Our lead times vary based on order volume and current production schedules. For standard items, lead times typically range from 2-4 weeks. For customized solutions or exceptionally large orders, our sales team will provide a precise lead time estimate upon quotation.

Lead Time & Fulfillment

We maintain a substantial inventory of standard 1/2 3/4 1 inch Y BRANCH PIPE FITTING CONNECTOR MALLEABLE IRON GALVANIZED 45 DEGREE FEMALE sizes to facilitate rapid dispatch. For bulk orders, our streamlined production process ensures efficient manufacturing and timely delivery. We work with trusted logistics partners to guarantee secure and prompt global shipping, providing tracking and regular updates on your order status.

Warranty & After-Sales Support

All our fittings come with a standard 12-month warranty against manufacturing defects, underscoring our confidence in product quality. Our dedicated after-sales support team is available to assist with any technical queries, installation guidance, or troubleshooting. We are committed to ensuring client satisfaction throughout the entire product lifecycle.

Conclusion

The selection of robust, high-performance pipe fittings is a critical determinant of system reliability and operational efficiency in B2B industrial applications. The 1/2 3/4 1 inch Y BRANCH PIPE FITTING CONNECTOR MALLEABLE IRON GALVANIZED 45 DEGREE FEMALE offers a superior solution, combining the inherent strength and ductility of malleable iron with the exceptional corrosion resistance of hot-dip galvanization. Its precision engineering for a 45-degree branch ensures optimal fluid dynamics, making it an ideal choice for diverse sectors including petrochemical, water treatment, and general utilities. By prioritizing quality materials, rigorous manufacturing processes, and comprehensive support, we deliver fittings that not only meet but exceed industry expectations, ensuring long-term value and sustained performance for our clients.

References

1. American Society for Testing and Materials (ASTM). A197/A197M-00(2017) Standard Specification for Cupola Malleable Iron.
2. American Society for Testing and Materials (ASTM). A153/A153M-16 Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware.
3. American National Standards Institute (ANSI). B16.3-2019 Malleable Iron Threaded Fittings: Classes 150 and 300.
4. International Organization for Standardization (ISO). ISO 7-1: Pipe threads where pressure-tight joints are made on the threads — Part 1: Dimensions, tolerances and designation.
5. International Organization for Standardization (ISO). ISO 1461: Hot-dip galvanized coatings on fabricated iron and steel articles – Specifications and test methods.
