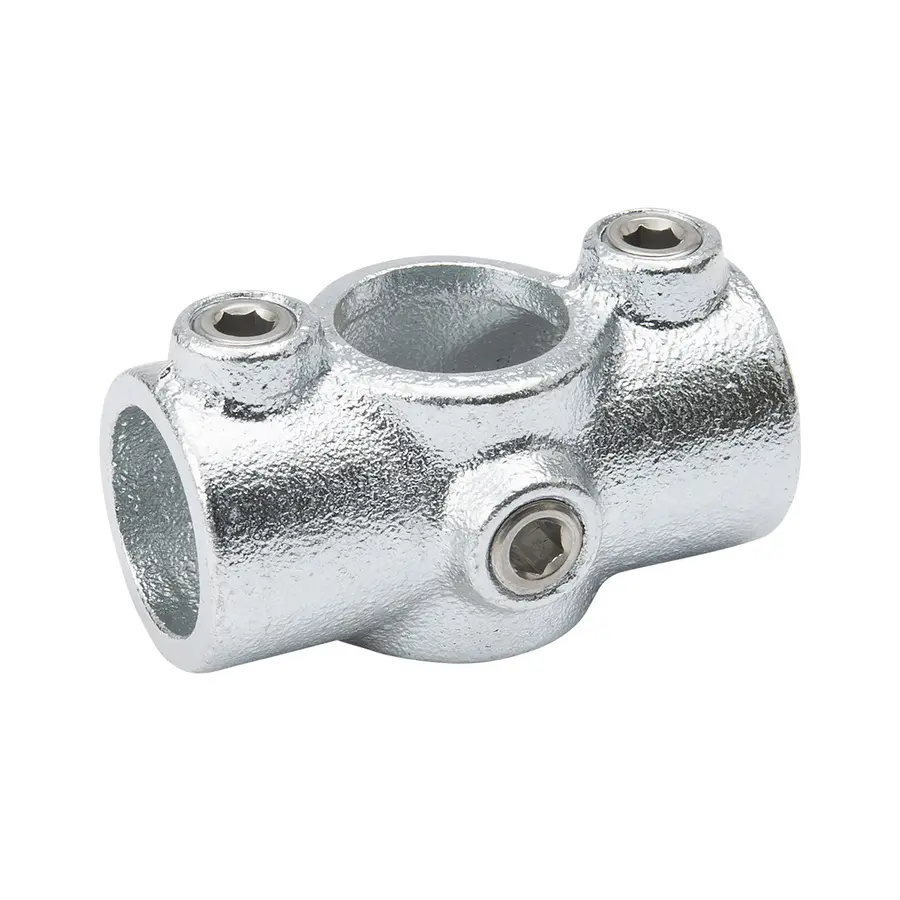

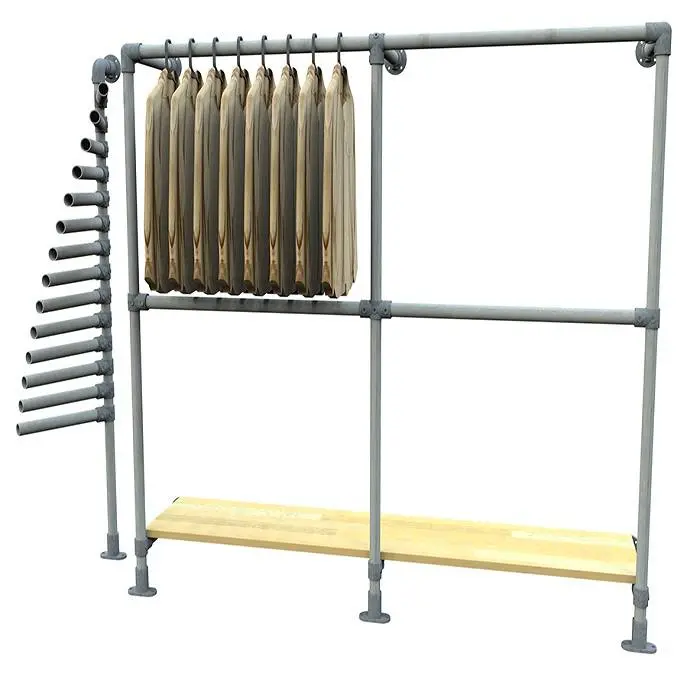

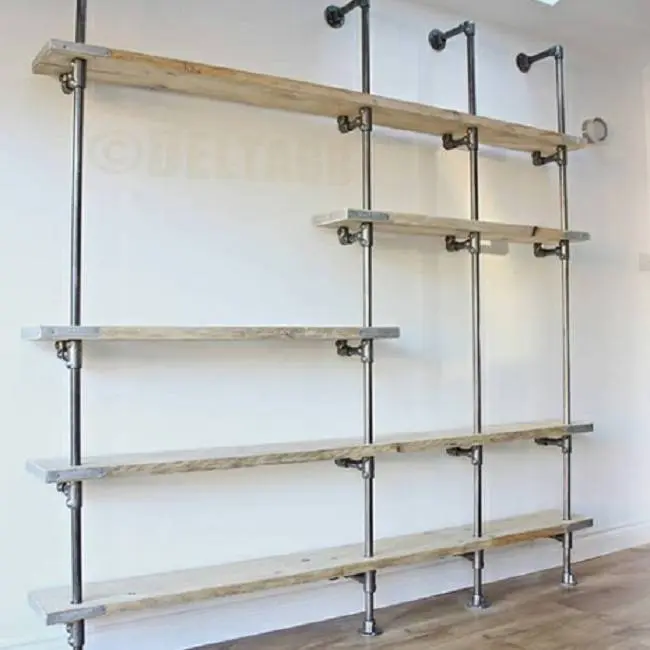

Galvanized cast iron key clamp used in clothes rack, shelf etc

Short Description:

Overview Quick Details Place of Origin: Hebei, China (Mainland) Brand Name: HH Model Number: HH232 ...

CONTACT NOW DOWN LOAD PDF

Details

Cast iron Key clamp fittings, handrail fittings

We have all the components and different sizes available to construct tubular structures.The size of tube range from 26mm OD to 60mm OD.Components are very good for constructing safety handrail ,machine guardrails,shopping trolley stations,guard rails for pools and waterways,exclusion zones around railway track side equipment and easy access rails for older persons to enter their homes.

Key Clamps and Handrail clamps.
Key Clamps and Handrail Clamps are all common names for a system sold by Hebei Hanghong Trading Co.,Ltd
The Key Clamps can be used for all types of safety rail applications.
The Key Clamps are available in 5 size ranges and there are over forty different components
from Key Clamp elbows,Key Clamp base plates to Key Clamp tube joiners.
The Key Clamps come in galvanized finish along with the Key Clamp handrail tube.
The Key Clamps and handrail tube can rapidly assembled to make all types of structures which are mainly health and safety applications such as safety rails around water and machines.
The key Clamp systems can be found on the track side of railway lines,canals,rivers and motorways as safety handrails to protect the public from various hazards.
Key Clamps are increasingly being used in schools,colleges,doctors surgeries and hospitals in many forms such as stairway handrails and wheelchair ramps.

Key Clamps Specifications:

1. Circular clamp
2.Simple housing structure
3.Excellent leak tightness
4.Uniform pipe seal

Simple housing structure
Excellent leak tightness
Uniform pipe seal
Wide range of diameter

product photo

Clamps:

Specifications:

Key Clamps are used in conjunction with galvanised steel tubing. The Key Clamps are secured to the tube by means of hexagon socket set screws, which are tightened using an allen key or ratchet spanner to establish a firm lock between the clamp and the tube. The sharpened edges of the socket set screws effectively 'bite’ into the surface of the tube creating a solid connection.

Key Clamp Fittings Manufactured to BS EN 1562 1997

Hot-Dipped Galvanized to BS EN 1461 1999.

Available in 5 different sizes 26.9mm, 33.7mm, 42.4mm, 48.3mm (Scaffolding size) or 60.3mm

Our blackened, galvanized vintage iron styled fittings are fast using our in-house method.
Typically a dark/grey black effect, with original flecks and streaks of silver.
These are a great addition to our range that we are excited about.

The information regarding this range.

All fittings are done singly and therefore the finish does vary, and is by no means uniform. Fittings will be slightly greasy when delivered, so if further painting or clear coating is required, please de-grease beforehand to ensure adhesion. This is an irreversible chemical change to the galvanised coating, and does effect the corrosion resistance, for this reason we cannot guarantee their continued usability in outdoor environments.

We can cut lengths pipes to any sizes, feel free to Contact Us for a quotation.
Whether your idea is on a scrap of paper, or a CAD drawing, we can help quote you the parts necessary.
High Quality Key Clamps at a great price!

suited to a diverse range of tubular-based applications / constructions, appropriate for both interior and exterior environments.
