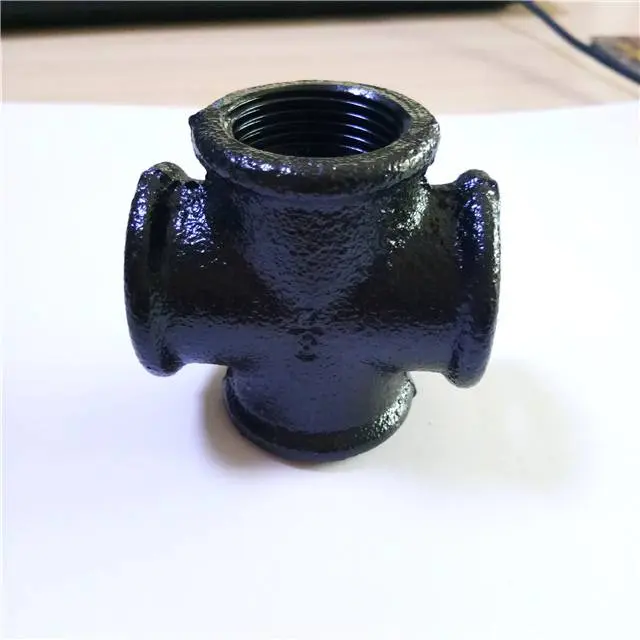

Fire fighting cross pipe fitting 2" cross Malleable Iron Pipe Fittings

Short Description:

Overview Quick Details Place of Origin: Hebei, China (Mainland), Hebei, China (Mainland) Brand Name: HH, Hanghong Model Number: HH, 1/2"...






DOWN LOAD PDF

Details

Tags

Overview Quick Details

Place of Origin:
Hebei, China (Mainland), Hebei, China (Mainland)
Brand Name:
HH, Hanghong
Model Number:
HH, 1/2"-2"
Type:
elbow, cap, tee, cross, coupling, elbow
Material:
Iron, malleable iron
Technics:
Casting, Casting
Connection:
Female, Welding
Shape:
Equal
Head Code:
round
Thread:
BSP, NPT
Application:
Industry, Furniture
Key word:
malleable iron pipe fittings

Supply Ability

15000000 Ton/Tons per Week Fire fighting cross pipe fitting 2" cross Malleable Iron Pipe Fi

Packaging & Delivery

Packaging Details
carton, pallet
Port
tianjin, shanghai,

Lead Time :
Quantity(Pieces) 1 – 10000 >10000
Est. Time(days) 15 To be negotiated


Product Description

Fire fighting cross pipe fitting 2" cross Malleable Iron Pipe Fittings



Material Black heart malleable iron
British Standard Threads :ISO 7/1
Dimension: BS EN 10242, BS 143&1256
Chemical property (C %2.4-2.9),   (Si %1.4-1.9),   (Mn %0.4-0.65),   (P% <0.1),   (S% <0.2%)
Physical property Tensile strength >=300MPa, Elongation >=6%, Hardness <=150HB
Testing pressure 2.5MPa, 100% test before shipment
Working pressure 1.6MPa
Type Banded without ribs, Beaded with ribs.
Size 1/8",3/8",1/2",3/4",1",11/4",11/2",2",21/2",3",4",5",6".
Surface Ø Galvanized
Ø Normal black/Shining black
Series Heavy, Standard, Medium, Light
Model Elbows, Tees, Crosses, Bends, Unions, Bushings, Lateral Y Braches, Sockets, Nipples, Hexagon/Round Caps, Plugs, Locknuts, Flanges, Side Outlet Tees, Side Outlet Elbows, etc.
Related products 1. Carbon steel nipples and sockets 2. Flanges
3. Carbon steel butt-welding fittings 4. Pipes
5. High-pressure fittings  6. Valves
7. P.T.F.E .thread seal tape 8. Brass fittings
9. Ductile iron pipe fittings 10. Copper fittings
11. Grooved fittings 12. Sanitary fittings, etc.
Connection Male, Female
Shape Equal, Reducing
Certificate BSI, ANAB, ISO9001,FM,UL
Applications Suitable for Pipe lines connect of water, steam, air, gas, oil and so on.
Buyer’s drawings or designs are available.
Package 1. Cartons without pallets.
2. Cartons with pallets.
3. Double woven bags
Or as buyer’s requirements.
Delivery detail
According to the quantities and specifications of each order.
Normal delivery time is from 30 to 45 days after receiving the deposit.










Packaging & Shipping

Packaging details: steam heating pipes socket malleabl iron pipe fitting forged pipe fitting.
1. by cartons+wooden pallets,800ctns for 1X20′ container
2. by cartons only,900-1050 cartons for 1X20′ container
3. by double player woven plastic bags
Delivery details: shipped in 30 days after payment





Company Information


1.About HangHong


HangHong Pipe & Fittings is a certified professtional company dealing with below products with different materials under kinds of standards for 25 years.
-Linepipe, pipes
-Elbows
-Flanges
-Tri tee, Cross tee, Y tee
-Caps
-Eccentric and concentric pipe fittings welded seamless ss reducer
-Other Pipe fittings
