Overview Quick Details
- Place of Origin:
- Hebei, China (Mainland)
- Brand Name:
- hanghong
- Model Number:
- HH
- Usage:
- Pipe Clamp
- Material:
- iron, Cast Iron, Malleable Iron And Ductile Iron
- Structure:
- Swivel Clamp
- Standard or Nonstandard:
- Standard
- Surface treatment:
- Black Oxide
- Grub Screw:
- ISO 4029 DIN 916
- Material Tensile Strength:
- 300-350 Mpa
- Application:
- Hand Railing, Safety Guardrails, Fencing,play Safe
- Used For:

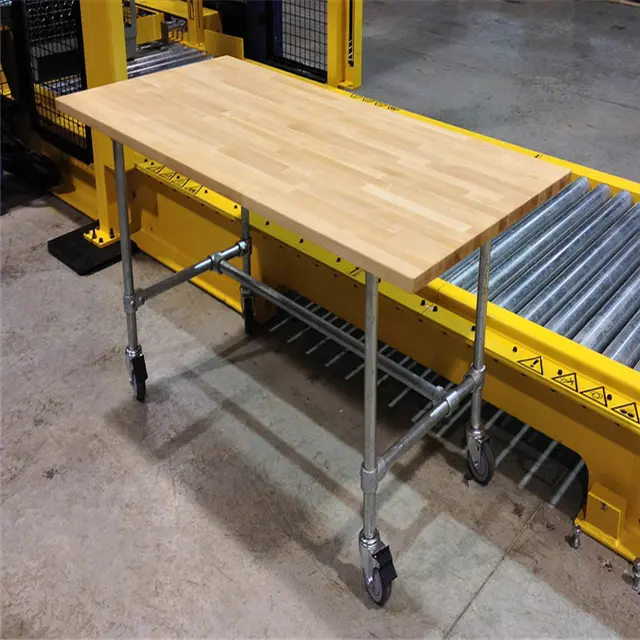

- Furniture, Racking,lighting
- Material Hardness:
- <=150HB
- Thickness Of Galvanization:
- 70um
- Material Elongation:
- 6-10%
- Suit To Pipe SIZE:
- 26.9mm
Supply Ability
- 1500 Ton/Tons per Month 90 degree elbow key clamp
Packaging & Delivery
- Packaging Details
- Port
- tianjin,qingdao,ningbo,shanghai
- Lead Time :
- Within 7-15 days after receipt of order
Black Oxide 4 yy 90 degree elbow key clamp pipe fitting used for 26.9mm pipe
We have all the components and different sizes available to construct tubular structures.The size of tube range from 26mm OD to 60mm OD.Components are very good for constructing safety handrail ,machine guardrails,shopping trolley stations,guard rails for pools and waterways,exclusion zones around railway track side equipment and easy access rails for older persons to enter their homes.
Key Clamps and Handrail clamps.
Key Clamps and Handrail Clamps are all common names for a system sold by Hebei Hanghong Trading Co.,Ltd

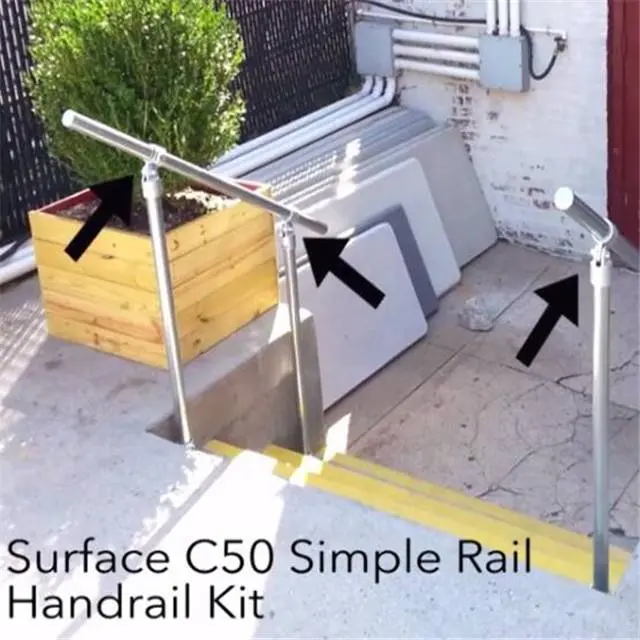

The Key Clamps can be used for all types of safety rail applications.

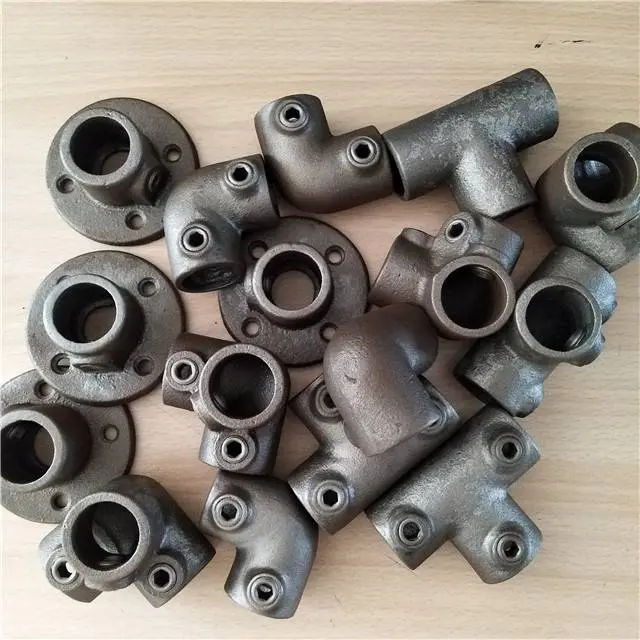

The Key Clamps are available in 5 size ranges and there are over forty different components

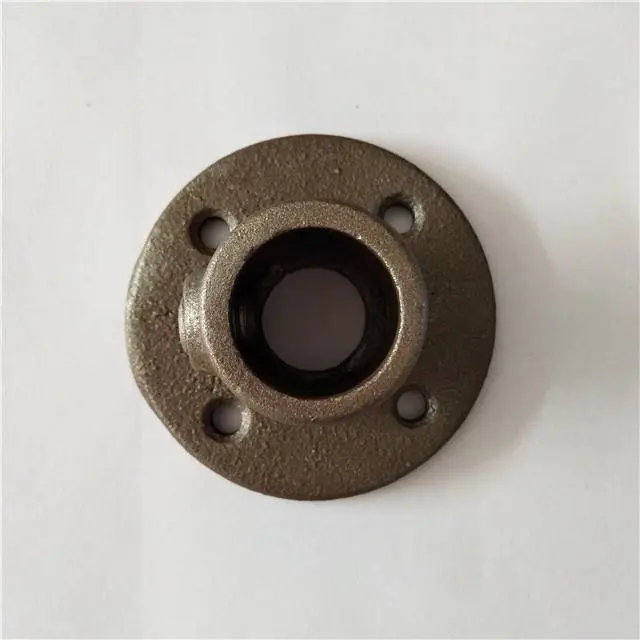

from Key Clamp elbows,Key Clamp base plates to Key Clamp tube joiners.
The Key Clamps come in galvanized finish along with the Key Clamp handrail tube.
The Key Clamps and handrail tube can rapidly assembled to make all types of structures which are mainly health and safety applications such as safety rails around water and machines.
The key Clamp systems can be found on the track side of railway lines,canals,rivers and motorways as safety handrails to protect the public from various hazards.
Key Clamps are increasingly being used in schools,colleges,doctors surgeries and hospitals in many forms such as stairway handrails and wheelchair ramps.
Key Clamps Specifications:
1. Circular clamp
2.Simple housing structure
3.Excellent leak tightness
4.Uniform pipe seal
Simple housing structure
Excellent leak tightness
Uniform pipe seal
Wide range of diameter
product photo
Clamps:
Specifications:
Key Clamps are used in conjunction with galvanised steel tubing. The Key Clamps are secured to the tube by means of hexagon socket set screws, which are tightened using an allen key or ratchet spanner to establish a firm lock between the clamp and the tube. The sharpened edges of the socket set screws effectively 'bite’ into the surface of the tube creating a solid connection.
Key Clamp Fittings Manufactured to BS EN 1562 1997
Hot-Dipped Galvanized to BS EN 1461 1999.
Available in 5 different sizes 26.9mm, 33.7mm, 42.4mm, 48.3mm (Scaffolding size) or 60.3mm
Our blackened, galvanized vintage iron styled fittings are fast using our in-house method.
Typically a dark/grey black effect, with original flecks and streaks of silver.
These are a great addition to our range that we are excited about.
The information regarding this range.
All fittings are done singly and therefore the finish does vary, and is by no means uniform. Fittings will be slightly greasy when delivered, so if further painting or clear coating is required, please de-grease beforehand to ensure adhesion. This is an irreversible chemical change to the galvanised coating, and does effect the corrosion resistance, for this reason we cannot guarantee their continued usability in outdoor environments.
We can cut lengths pipes to any sizes, feel free to Contact Us for a quotation.
Whether your idea is on a scrap of paper, or a CAD drawing, we can help quote you the parts necessary.
High Quality Key Clamps at a great price!
suited to a diverse range of tubular-based applications / constructions, appropriate for both interior and exterior environments.
Company Information
Hebei Hanghong Trading Co., Ltd
Factory Size (Sq.meters): 120000 square meters
Factory Location: Cangzhou Hebei
No. of Production Lines: 8
Certifications: ISO14001,ISO9001
Number of R&D Staff: Above 400 People
Number of QC Staff: 60 – 80 People
Industry experience: over 25 years for produced pipe fitting
Certification
Our Services
We specialized in manufacturing Pipe and Pipe fittings(Elbow,Reducer,Tee, Pipe Cap, Flange) for many years. we have supplied our products to many prestigious projects in Power plant, Petrochemicals, Fertilizer, Chemical Process Industries, Textile, Paper Industries & Defence .
But this does’nt stop us from catering to customers of all sizes.We follow stringent Quality Standard to ensure that the Products, Performance & Service you get from us is best.
