1" Cast Iron Key Clamp Fittings

Short Description:

Overview Quick Details Place of Origin: Hebei, China (Mainland) Brand Name: hanghong Model Number: key clamp fittings ...


Product Detail

Product Tags

Overview Quick Details

Place of Origin:
Hebei, China (Mainland)
Brand Name:
hanghong
Model Number:
key clamp fittings
Material:
Cast Iron
Mounted:
Flooring
Position:
Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
name:
key clamp fittings

Supply Ability

1000 Piece/Pieces per Week key clamp fittings

Packaging & Delivery

Packaging Details
key clamp fittings packed in papar carton
Port
tianjin

Lead Time :
15days


1" Cast iron key clamp fittings

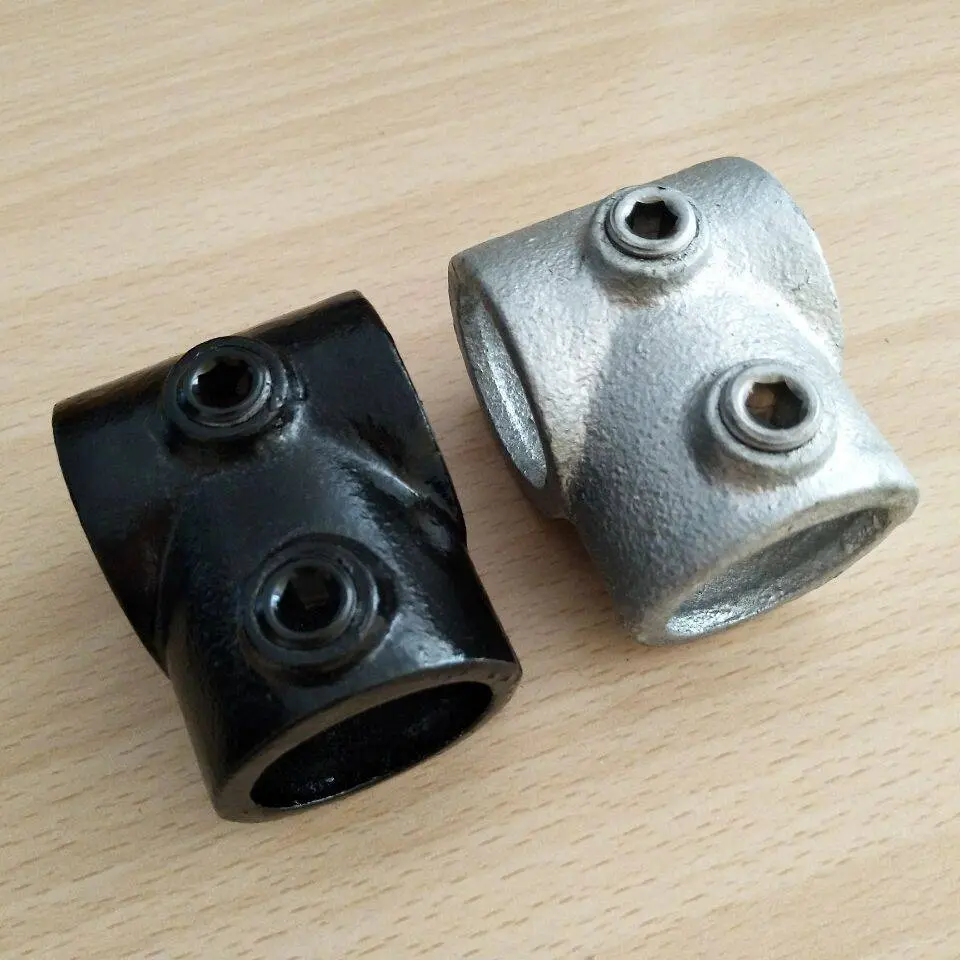

PRODUCT PICTURES:






Key Clamps are used in cotruction with galvanized steel tube.  The Key Clamps are secured to the tube by means of hexagon socket set screws, which are tightened using an allen key or ratchet spanner to establish a firm lock between the clamp and the tube.  The sharpened edges of the socket set screws effectively ‘bite’ into the surface of the tube creating a solid connection

Key Clamp Fittings Manufactured to BS EN 1562 1997
Hot-Dipped Galvanized to BS EN 1461 1999.
Available in 5 different sizes 26.9mm, 33.7mm, 42.4mm, 48.3mm (Scaffolding size) or 60.3mm
suited to a diverse range of tubular-based applications / constructions, appropriate for both interior and exterior environments.

A Handrail for outdoor Steps
Custom built heavy duty racking for shed or garage – height and width specified to suit your needs.
Custom made furniture such as a table or a bed
A heavy duty clothes rail etc

Loadings / Reguations:
When tightened to 4.1kg (29 ft/lb) a slip load of 900kg can be achieved on each screw.

 Versatile / Flexible: Ever-growing range of fittings, in a number of sizes, to suit a vast number of tubular constructions.
Cost Effective: Key Clamps are a cost effective means of tubular constructions, as opposed to a bespoke construction.
Ease of installation: No special skills required to install.  No pre-fabrication, welding or threading is required – the only tool necessary is an allen key.
Durable: High corrosion resistance, Hot Dipped Galvanized Cast Iron to BS EN ISO 1461:1999
Key Clamps are supplied in a galvanized finish.  We also offer a powder coating service through which the Key Clamps and / or tube can be supplied in a RAL colour of your choice.  When applied to a galvanised finish, powder coating provides a long lasting, low-maintenance and colourful finish ideal for a multitude of applications
